MATE: our ROV for offshore inspection & survey

MATE

ROV

Portable and agile ROV for versatile offshore inspection, survey, and scientific applications with high payload capacity and precise positioning

Build MATE with an expert

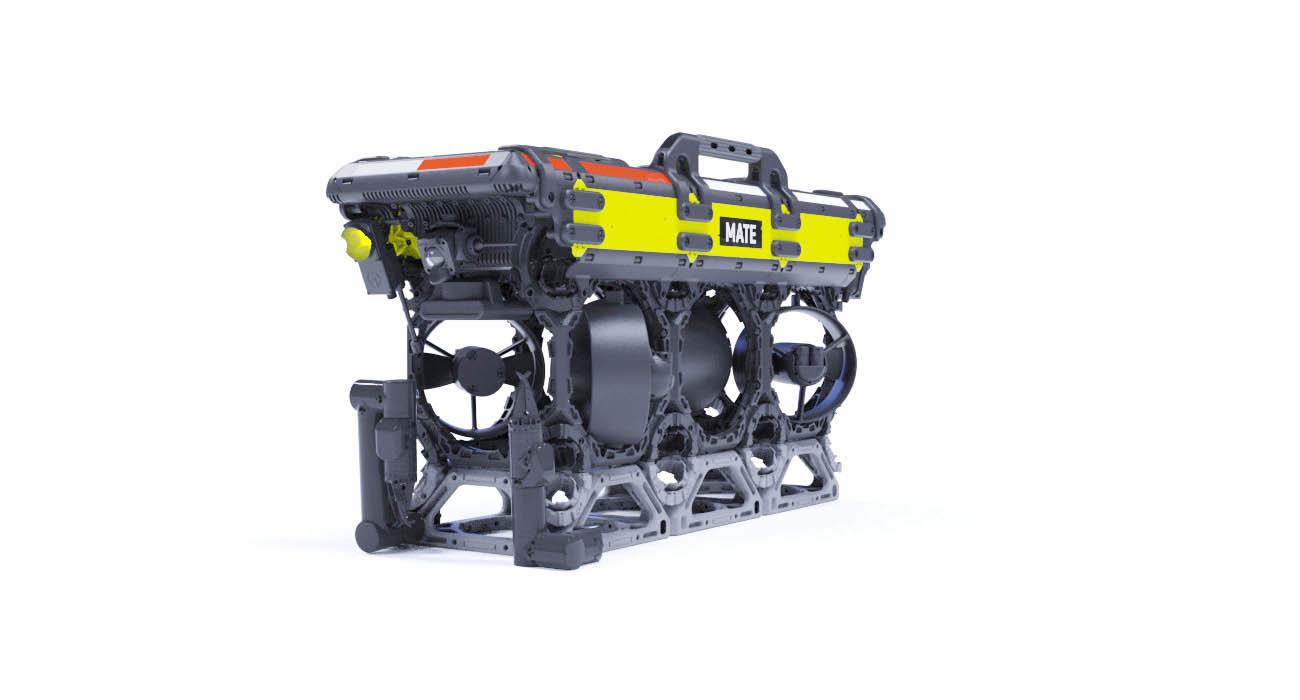

MATE is a portable, highly adaptable remote operated vehicle (ROV). Its high payload capacity and agility are unique in its class, enabling an extremely wide range of applications in the offshore sector.

Best Suited For

Underwater inspection
Observation offshore
Survey on port infrastructure
Scientific exploration
Mission with small vessels

Why this configuration

Cost effective
Portable
Easy deployment
Minimal setup
Lower power consumption
Medium payload capacities

Basic configuration & extensions

Basic

Topside unit with power supply, monitor and pilot software
Manual tether management system
Tether – hybrid coax-cable for power supply and data
ROV with:
- Main unit (controller and power supply)
- 6 thruster
- Full hd cameras (180 degree field of view)
- LED spots
- DVL

Extensions

Electric tether management system
Tether – hybrid fiberoptic cable
Latch lock (for launch and recover)
Inertia navigation system
Forward locking sonar
Manipulators
4k cameras
Laser

Technical specifications

Dimensions

Length

1250

Width

435

Height

675

Weight (Air)

Depth Rating

300

Depth Rating (Option)

600 / 1000

Performance

Max. Speed (Forward)

2.5

Max. Thrust (Horizontal)

kgf

Max. Thrust (Vertical)

kgf

Max. Bandwith (Coax, Standard)

Gbps

Max. Bandwith (Fiber Optic, Option)

Gbps

Max. Payload Capacity

Electrical Specifications

Topside Input Voltage

VAC

400

Topside Input Frequency

Electric Fuse Rating

Max. Power Consumption

Vehicle Input Voltage

VDC

800

Vehicle System Voltage

VDC

Payload Power Capacity

500

Available Aux. Sensor Power Voltages

VDC

12 / 24 / 36 / 48

Max. Aux. Sensor Power Current

Navigation & Altitude Sensors

Model

–

Nortek Nucleus 1000

Functions

–

Bottom Tracking
Water Tracking
Current Profiling
Altimeter
INS
AHRS
Pressure Sensor
Magnetometer
Accelerometers
Gyroscopes

Camera System

Amount

–

Model

–

Sony Starvis
(Ultra Low Light)

Shutter Type

–

Rolling Shutter

Field of View (Water)

135

Max. Resolution

–

1080p

Max. Resolution (Option)

–

Max. Frame Rate

fps

Video Format

–

MJPEG

Software & Data Display

Real Time Video Stream

–

Live Display

Depth

–

Live Display

Altitude

–

Live Display

Attitude (Roll / Pitch)

–

Live Display

REAL MISSIONS

MATE in action

Securing valuable environmental data through innovative recovery solutions

Reducing the risk of data and equipment loss through reliable subsea recovery and servicing of seabed lander systems. The ROV enables direct system access, contactless data transfer, and underwater recharging, minimizing costly and time-consuming recovery operations.

System: MATE ROV
Application: Data recovery
Capability: Navigation, heavy lift, secure data readout, recharge batteries
Environment: Baltic Sea, North Sea, Mediterranean Sea
Customer: Federal Research Institute

More missions ahead

We're out in the field. New challenges, new deployments, and new success stories are on the way.

System:
Application: –
Capability: –
Environment: –
Customer: –

Rough use takes its toll: offshore, it’s not a question of if something will break, but when. The problem arises when spare parts are not readily available. Fortunately, 80 % of MATE’s components can be printed within 24 hours and delivered to you in no time.

ALWAYS READY

Damage is inevitable, but downtime is not.

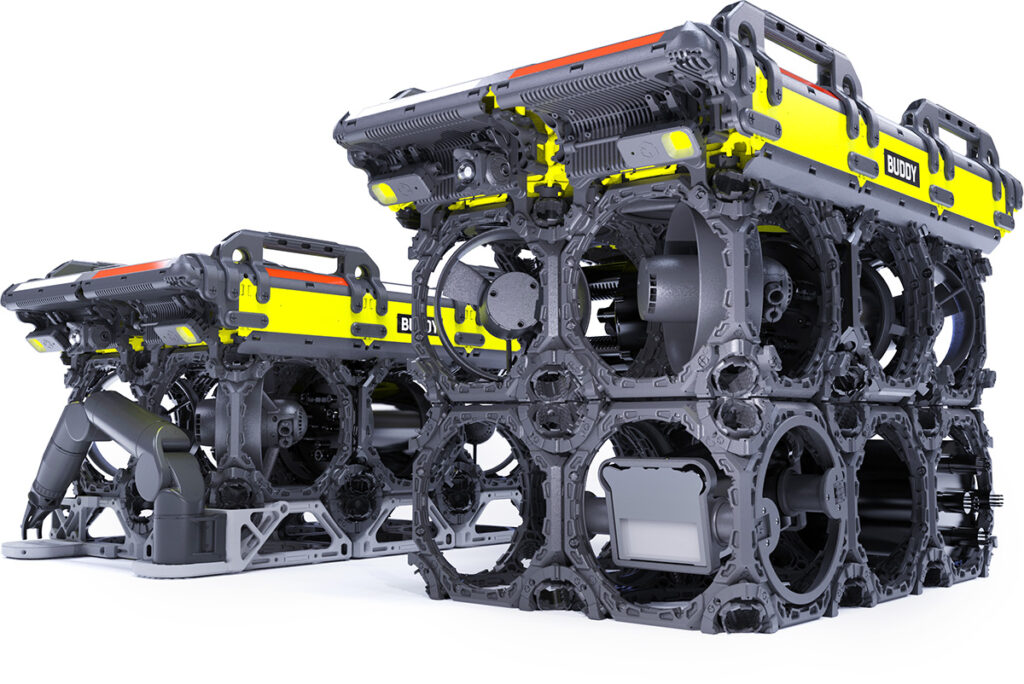

GROWS WITH YOU

Designed to handle change.

What you deploy today is just the beginning. Thanks to its modular architecture, you can adapt, extend, or reconfigure your system solution if your requirements change – there’s no need to replace it!
